HIT-240HDE4 Solar Panel from Sanyo Electric

Electrical Characteristics
STC Power Rating Pmp (W)	230
Open Circuit Voltage Voc (V)	43.6
Short Circuit Current Isc (A)	7.37
Voltage at Maximim Power Vmp (V)	35.5
Current at Maximim Power Imp (A)	6.77
Panel Efficiency	17.3%
Fill Factor	71.6%
Power Tolerance	-5.00% ~ 10.00%
Maximum System Voltage Vmax (V)	1000
Maximum Series Fuse Rating (A)	15
Temperature Coefficients
Temperature Coefficiency of Isc	0.030 %/ºC
Temperature Coefficiency of Voc	-0.25 %/ºC
Temperature Coefficiency of Pmp	-0.30 %/ºC
Mechanical Characteristics
Cell Type	HIT Silicon Cell
Cell Size(mm)	125 × 125
Cells	6 × 10
Dimensions	1610.0 × 861.0 × 35.0mm (33.9 × 63.4 × 1.4 inch)
Weight	16.5Kg (36.4 lbs)
Junction Box (Safety Rating, Bypass Diodes)
Positive Cable (Length, Cable Cross-Section)
Negative Cable (Length, Cable Cross-Section)
Plug Connector (Type, Safety)
Front Cover (Thickness,Material)
Backsheet Cover (Color, Thickness, Material)
Encapsulation Materials
Frame Material
Operation Conditions
Nominal Operating Cell Temperature (NOCT)	45.0ºC
Operating Temperature	-20.0ºC to 46.0ºC
Maximum Load
Hail Storm Rating
Fire Safety Rating	Class II
Warranty & Certification
Certificates	IEC 61215 Ed.2 IEC 61730 Ed.2
Defects & Workmanship Warranty Period	5.0 Years
90% Power Output Warranty Period	10.0 Years
80% Power Output Warranty Period	20.0 Years
Are Warranties Insured By Third Party	False

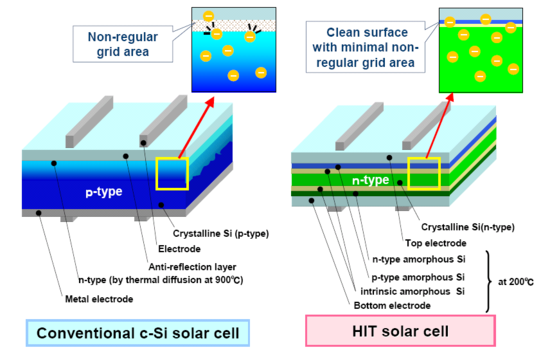

Basic Structure of a HIT Cell

HIT Structure of the Cell Surface


HIT high efficiency at high temperatures

Datasheets HIP-xxxHDE4 in English, Deutsch, Espanol, Italiano, and Francais

Installation Manual HIP-xxxHDE4 in English, Deutsch, Espanol, Italiano, and Francais

Guarantee Conditions HIP-xxxHDE4 in English, Deutsch, Espanol, Italiano, and Francais
