Rechargeable Battery
· 8D AGM – 2000+ Whrs electricity (245 amp-hr) (5+ yr life)
· Lightweight Li-Ion battery option – decreases weight by 50 lbs/kW; increases price by $2000/kW
· Solar panel and wind turbine/aux charging portals
· Chargeable by other 12V DC supplies such as microhydro or charger

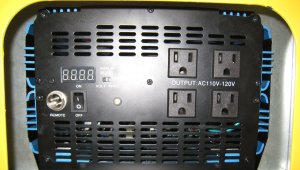

Power Inverter (not installed in Power Module)
· Output: 110/120 VAC 60Hz (4 standard 15amp plug outlets) or 220 VAC 50Hz (2 universal 30amp outlets)
· Modified sine wave output
· Max continuous power: 3,500 W
· Surge capacity (peak power): 7,000 W
· Digital LCD wattage power meter
· Power and fault LED indicators
· Low voltage alarm and shutdown
Solar Panel
· Kyocera KC130TM 130 W (20+ yr life)
· One panel included; second panel optional for faster charge rates
· 30’ cord with plug for easy connection to unit
· 56”h x 26”w x 2”d; aluminum frame; 27 lbs
Charge Controller
· 30 amp over/undercharge protector
· LCD digital display: voltmeter, solar current ammeter
· Battery and charge status LEDs

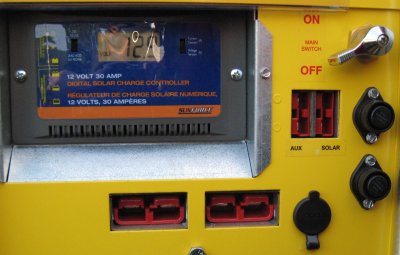

DC End
· Rugged master on/off disconnect switch
· 12V DC cigarette-lighter socket output
· Quick-connect plug for Power Module option
Chassis
· Patented steel enclosure for ruggedness and safety
· 4” caster wheels for easy portability
· Sturdy handles for lifting
· 28”l x 15”w x 30”h; ~260 lbs

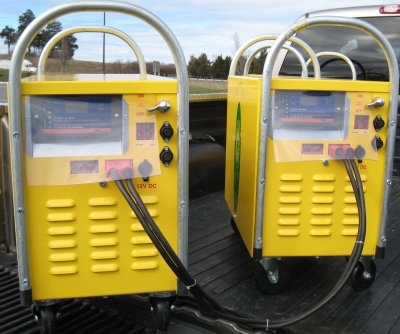

Power Module Option (Identical to SUN110/220 w/out inverter)
· Link to main unit to expand (double, triple, …) electricity generation and storage
User’s Manual included. One-year manufacturer’s warranty.
Easy to use – “plug & play”. Silent. No gas required.
|
