Electrical Characteristics
|
|
STC Power Rating Pmp (W)
|
80
|
|
PTC Power Rating Pmpp (W)
|
70.2
|
|
PTC/STC Power Ratio
|
87.8%
|
|
Open Circuit Voltage Voc (V)
|
21.3
|
|
Short Circuit Current Isc (A)
|
5.30
|
|
Voltage at Maximim Power Vmp (V)
|
17.1
|
|
Current at Maximim Power Imp (A)
|
4.67
|
|
Panel Efficiency
|
12.6%
|
|
Fill Factor
|
70.9%
|
|
Power Tolerance
|
-5.00% ~ 10.00%
|
|
Maximum System Voltage Vmax (V)
|
600
|
|
Maximum Series Fuse Rating (A)
|
10
|
|
Temperature Coefficients
|
|
Temperature Coefficiency of Isc
|
0.053 %/ºC
|
|
Temperature Coefficiency of Voc
|
-0.36 %/ºC
|
|
Temperature Coefficiency of Pmp
|
-0.49 %/ºC
|
|
Mechanical Characteristics
|
|
Cell Type
|
Polycrystalline Cell
|
|
Cell Size(mm)
|
125 × 125
|
|
Cells
|
4 × 9
|
|
Dimensions
|
1200.0 × 537.0 × 46.0mm (21.1 × 47.2 × 1.8 inch)
|
|
Weight
|
9.5Kg (20.9 lbs)
|
|
Junction Box (Safety Rating, Bypass Diodes)
|
|
|
Positive Cable (Length, Cable Cross-Section)
|
|
|
Negative Cable (Length, Cable Cross-Section)
|
|
|
Plug Connector (Type, Safety)
|
Junction Box
|
|
Front Cover (Thickness,Material)
|
|
|
Backsheet Cover (Color, Thickness, Material)
|
|
|
Encapsulation Materials
|
|
|
Frame Material
|
|
|
Operation Conditions
|
|
Nominal Operating Cell Temperature (NOCT)
|
47.5ºC
|
|
Operating Temperature
|
-40.0ºC to 90.0ºC
|
|
Maximum Load
|
2400
|
|
Hail Storm Rating
|
|
|
Fire Safety Rating
|
Class C
|
|
Warranty & Certification
|
|
Certificates
|
|
|
Defects & Workmanship Warranty Period
|
5.0 Years
|
|
90% Power Output Warranty Period
|
10.0 Years
|
|
80% Power Output Warranty Period
|
25.0 Years
|
|
Are Warranties Insured By Third Party
|
False
|
|
Packaging
|
|
Number of Panels per Box
|
1
|
|
Box Gross Size(mm)
|
1350 × 700 × 75
|
|
Box Gross Weight
|
|
|
Boxes per Pallet
|
|
|
Pallet Gross Size(mm)
|
|
|
Pallet Gross Weight
|
|
|
Shipping Loading (20GP)
|
|
|
Shipping Loading (40GP)
|
|
|
Shipping Loading (40HQ)
|
|

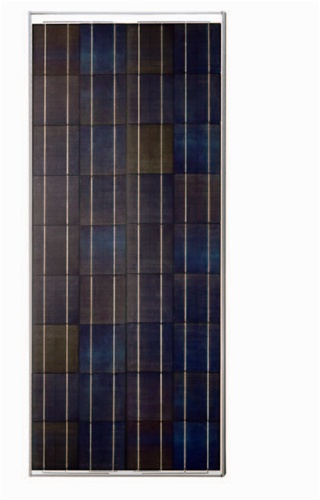

Sharp's NE-80EJE solar panel offers industry-leading performance, durability, and reliability for a variety of electrical power requirements. Using breakthrough technology perfected by Sharp's nearly 45 years of research and development, these modules use a textured cell surface to reduce reflection of sunlight, and BSF (Black Surface Field) structure to improve conversion efficiency. An anti-reflective coating provides a blue color and increases the absorption of light in all weather conditions.
Designed to withstand rigorous weather conditions, a junction box is also provided for easy electrical connections in the field, making Sharp's NE-80EJE solar panels the perfect combination of advanced technology and reliability.
Common applications include RV's, cabins, solar power stations, pumps, beacons, and lighting equipment.
- High-power module (80 Watts) using 125mm square multi-crystal silicon solar cells with 12.6% module conversion efficiency
- Bypass diodes minimizes the power drop caused by shade
- Improved cell conversion efficiency: 14.11%
- Water white, tempered glass, EVA laminate, plus aluminum frame for extended outdoor use
- Junction box for easy electrical connections in the field
- Nominal 12VDC output for battery charging applications
- UL Listings : UL 1703, cUL
- Sharp modules are manufactured in ISO 9001 certified facilities
- 25-year limited warranty on power output
