Electrical Characteristics
|
|
STC Power Rating Pmp (W)
|
123
|
|
PTC Power Rating Pmpp (W)
|
108.2
|
|
PTC/STC Power Ratio
|
88.0%
|
|
Open Circuit Voltage Voc (V)
|
21.8
|
|
Short Circuit Current Isc (A)
|
7.99
|
|
Voltage at Maximim Power Vmp (V)
|
17.2
|
|
Current at Maximim Power Imp (A)
|
7.15
|
|
Panel Efficiency
|
12.4%
|
|
Fill Factor
|
70.6%
|
|
Power Tolerance
|
-5.00% ~ 10.00%
|
|
Maximum System Voltage Vmax (V)
|
600
|
|
Maximum Series Fuse Rating (A)
|
10
|
|
Temperature Coefficients
|
|
Temperature Coefficiency of Isc
|
0.053 %/ºC
|
|
Temperature Coefficiency of Voc
|
-0.36 %/ºC
|
|
Temperature Coefficiency of Pmp
|
-0.49 %/ºC
|
|
Mechanical Characteristics
|
|
Cell Type
|
Polycrystalline Cell
|
|
Cell Size(mm)
|
156 × 156
|
|
Cells
|
4 × 9
|
|
Dimensions
|
1499.0 × 662.0 × 46.0mm (26.1 × 59.0 × 1.8 inch)
|
|
Weight
|
14.0Kg (30.9 lbs)
|
|
Junction Box (Safety Rating, Bypass Diodes)
|
|
|
Positive Cable (Length, Cable Cross-Section)
|
|
|
Negative Cable (Length, Cable Cross-Section)
|
|
|
Plug Connector (Type, Safety)
|
Junction Box
|
|
Front Cover (Thickness,Material)
|
|
|
Backsheet Cover (Color, Thickness, Material)
|
|
|
Encapsulation Materials
|
|
|
Frame Material
|
|
|
Operation Conditions
|
|
Nominal Operating Cell Temperature (NOCT)
|
47.5ºC
|
|
Operating Temperature
|
-40.0ºC to 90.0ºC
|
|
Maximum Load
|
2400
|
|
Hail Storm Rating
|
|
|
Fire Safety Rating
|
Class C
|
|
Warranty & Certification
|
|
Certificates
|
|
|
Defects & Workmanship Warranty Period
|
5.0 Years
|
|
90% Power Output Warranty Period
|
10.0 Years
|
|
80% Power Output Warranty Period
|
25.0 Years
|
|
Are Warranties Insured By Third Party
|
False
|

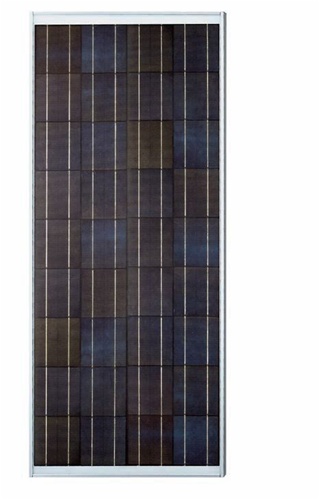

Off grid 130 watt module from the world’s trusted source for solar.Using breakthrough technology, made possible by nearly 50 years of proprietary research and development, Sharp’s ND-130UJF solar module incorporates (36) 155 mm square solar cells with an advanced surface texturing process to increase light absorption and improve efficiency. Common applications include cabins, solar power stations, pumps, beacons, and lighting equipment.
- Engineering Excellence
Module offers industry-leading performance for a variety of electrical power requirements.
- Durable
Designed and tested to withstand rigorous weather conditions.
- Reliable
25-year limited warranty on power output.
- High Performance
Solar cells have an advanced surface texturing process to increase light absorption and improve efficiency.
