Electrical Characteristics
|
|
STC Power Rating Pmp (W)
|
85
|
|
Open Circuit Voltage Voc (V)
|
63.8
|
|
Short Circuit Current Isc (A)
|
2.11
|
|
Voltage at Maximim Power Vmp (V)
|
49.0
|
|
Current at Maximim Power Imp (A)
|
1.74
|
|
Panel Efficiency
|
8.1%
|
|
Fill Factor
|
63.1%
|
|
Power Tolerance
|
-5.00% ~ 10.00%
|
|
Maximum System Voltage Vmax (V)
|
600
|
|
Maximum Series Fuse Rating (A)
|
4
|
|
Temperature Coefficients
|
|
Temperature Coefficiency of Isc
|
0.070 %/ºC
|
|
Temperature Coefficiency of Voc
|
-0.30 %/ºC
|
|
Temperature Coefficiency of Pmp
|
-0.24 %/ºC
|
|
Mechanical Characteristics
|
|
Cell Type
|
Amorphous Thin-Film Tandem
|
|
Cell Size(mm)
|
0 × 0
|
|
Cells
|
0 × 0
|
|
Dimensions
|
1129.0 × 934.0 × 46.0mm (36.8 × 44.4 × 1.8 inch)
|
|
Weight
|
18.0Kg (39.7 lbs)
|
|
Junction Box (Safety Rating, Bypass Diodes)
|
1 Bypass diodes
|
|
Positive Cable (Length, Cable Cross-Section)
|
|
|
Negative Cable (Length, Cable Cross-Section)
|
|
|
Plug Connector (Type, Safety)
|
MC3 connector
|
|
Front Cover (Thickness,Material)
|
|
|
Backsheet Cover (Color, Thickness, Material)
|
|
|
Encapsulation Materials
|
|
|
Frame Material
|
|
|
Operation Conditions
|
|
Nominal Operating Cell Temperature (NOCT)
|
44.0ºC
|
|
Operating Temperature
|
-40.0ºC to 90.0ºC
|
|
Maximum Load
|
2400
|
|
Hail Storm Rating
|
|
|
Fire Safety Rating
|
Class C
|
|
Warranty & Certification
|
|
Certificates
|
- CE Europe
- IEC 61730 Ed.2
- IEC 61646 Ed.1
|
|
Defects & Workmanship Warranty Period
|
5.0 Years
|
|
90% Power Output Warranty Period
|
10.0 Years
|
|
80% Power Output Warranty Period
|
25.0 Years
|
|
Are Warranties Insured By Third Party
|
False
|

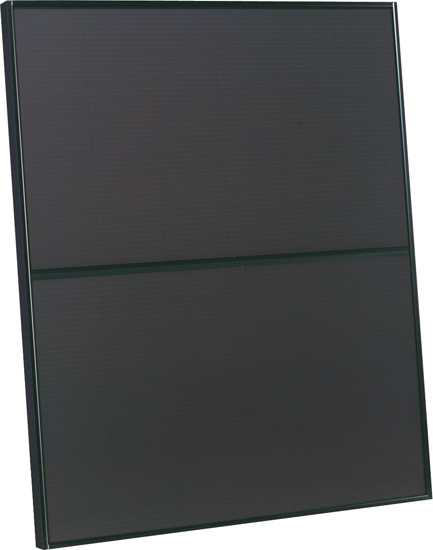

Sharp’s thin film product pairs amorphous silicon with a layer of microcrystalline silicon to achieve high stability and performance. Produced with less than one percent of the silicon used in crystalline solar cells, thin film products offer high performance with less semiconductor material. With a low temperature coefficient for output power, thin film generates greater energy than its crystalline silicon counterpart in geographic regions where temperatures are high. In warm climates, this translates into more kilowatt-hours per kilowatt.
ENGINEERING EXCELLENCE
Tandem-junction structure (amorphous silicon/ microcrystalline silicon) captures a wider part of the solar spectrum, converting more sunlight into electricity.
HIGH VOLTAGE ADVANTAGE
Proprietary design increases reliability by minimizing losses caused by module output variation.
RELIABILITY
Microcrystalline layer provides superior long-term stability and higher module efficiency.
DURABLE
Four bypass diodes ensure maximum output under non-uniform operating conditions.
INNOVATIVE
Single-layer glass with polymeric backskin lowers pounds per watt and transportation costs. Modules are sized to optimize the greatest amount of power, easily handled by one person.
